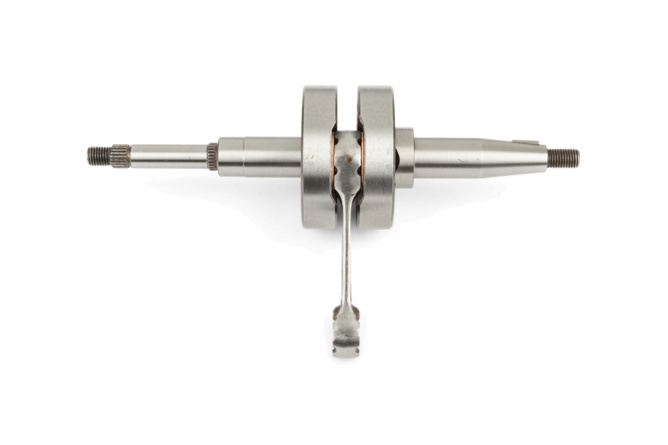

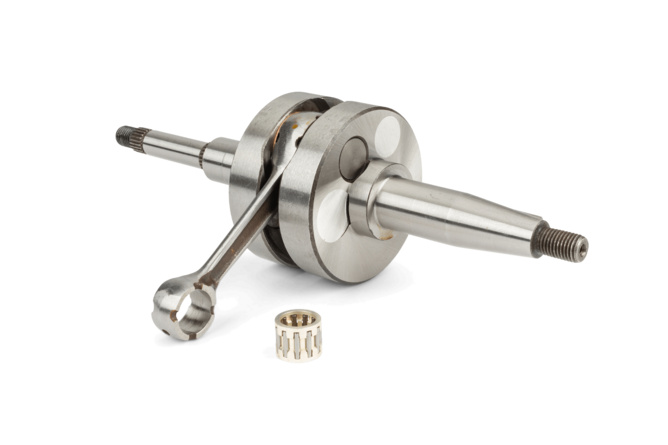

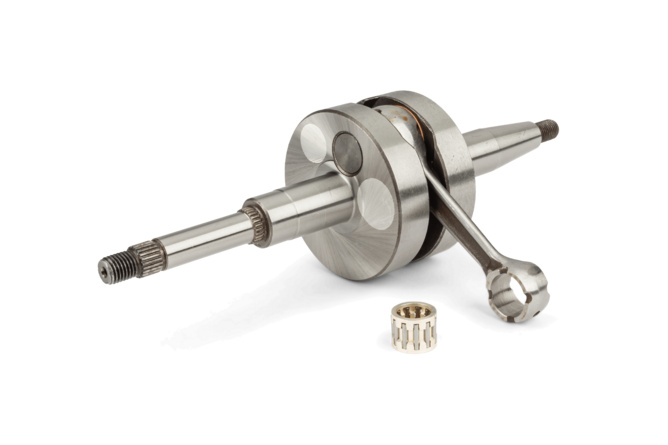

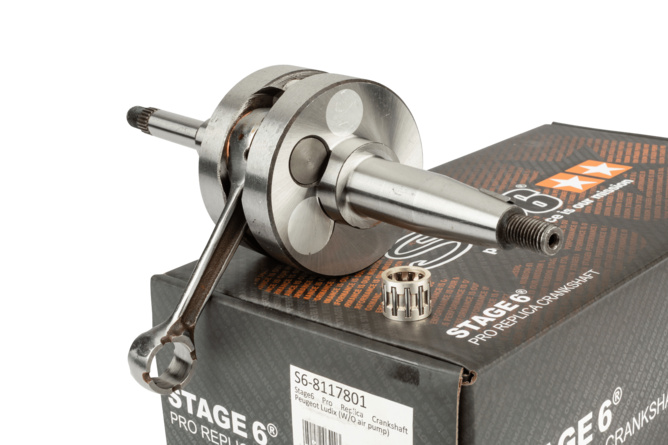

Crankshaft Stage6 Pro Replica Peugeot Ludix, Kisbee, Speedfight, etc.
This Stage6 Pro Replica crankshaft for Peugeot Ludix / Kisbee without air pump is characterized by precise workmanship and very good balancing.
Design and Performance Stage6 Pro Replica Crankshaft Peugeot
The Stage6 Pro Replica crankshaft features a connecting rod in original length with a 12 mm piston pin, two thrust washers, a small end bearing, and steel webs.
This reinforced crankshaft was developed to optimize the performance of Stage6 StreetRace 50cc and 70cc cast iron cylinders. It can also be used with other original or sport class cylinders up to 12 hp and a maximum of 12,000 rpm.
We recommend combining it with the Stage6 C4 bearing and oil seal set.
Attention: This crankshaft is exclusively intended for models WITHOUT an extra disc on the crank web (ignition side). This version is relatively rare, so a careful comparison should be made before purchasing. If you have a version with a 3rd web, you can find it here: Stage6 Pro Replica Peugeot crankshaft.
Stage6 Crankshaft Peugeot:
- Connecting rod length: Original
- Stroke: Original
- Piston pin: 12 mm
- For horizontal Peugeot engines WITHOUT air pump (without 3rd web)
- Class: Sport
- Replaces OEM reference Peugeot 771866
Stage6 Pro Replica
The Pro Replica series from Stage6 includes two product types:
- Exhausts
- Crankshafts
It is characterized by high-quality products and is located in the entry-level tuning sector (Sport). In conjunction with the appropriate parts (sports cylinder, sports variator, larger carburetor, etc.), the Pro Replica tuning parts provide a nice increase in performance without sacrificing reliability for everyday use at really fair prices.
How to change a crankshaft?
The crankshaft is one of the main components of the engine and is responsible for the smooth operation of motorcycle, scooter and moped, whether with two-stroke or four-stroke engine. The longevity of the engine depends not only on the proper condition of the crankshaft, but also on the fact that it is properly mounted.
For a correct installation of the crankshaft, we recommend our tutorial: Crankshaft disassembly and assembly.
How can I tell if my crankshaft is Damaged?
A broken crankshaft causes metallic noises, unusual vibrations, leaking oil seals and drastically reduces the performance of the two-wheeler. In any case, the vehicle must be stopped immediately to prevent the damage from getting worse.
Please note that whenever the crankshaft is changed and serviced, you'll have to install new crankshaft bearings.
Tuning Level: Sport
We categorize our products into different performance levels Original, Sport, Racing and High End , so that our customers can choose the right parts for their setup. It is really important to combine parts that belong to the same tuning level, this is especially true for cylinders, crankshafts and exhausts.
The products listed under Sport yield better performance than Original parts. They may have technical differences, such as the use of higher quality materials, a larger displacement or a performance-enhancing design. They are suitable for everyday use and have a long service life.
| Crankshaft Stage6 Pro Replica Peugeot horizontal (w/o air pump) | |
|---|---|
| Article no. | S6-8117801 |
| EAN | 4051272064203 |
| Weight | 1,93 kg |
| Series | Pro Replica |
| Brand | Stage6 |
| Product type | Crankshaft |
| Tuning level | Sport |
| Piston pin | 12 mm |
| Stroke | Original |
| Conrod length | Standard |
